ASET Corp.

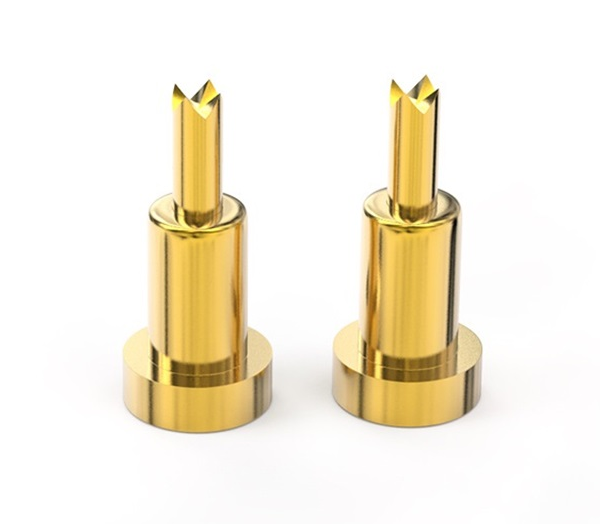

Hyperspace Black Gold® Test Probes
Solution to Lead-free Testing & Solder Migration Issues
Test Pitch: 0.20mm ~ 1.27mm (Catalogue available upon request)
Applications: Memory Test, Logic Test, High Frequency Test, LCD Test
Advanced e-beam non-chemical plating process providing superior hardness, wear and non-stick properties.
Reduce solder affinity in Lead-free Testing
Contact Resistance maintain at ‹ 30mOhms
Operating Temperature up to 250 Deg. Celcius
Improve Test Probe life span › 2X ~ 4X
Maintenance Free (No cleaning downtime)
Work for both BeCu and SK4 base material
Non-Chemical Green Process
Contact Hardness @ › 2000 Vickers (See Below)
ROHS Test Report
| Test (ppm) Black Gold | |
|---|---|
| Cadmium, Cd | Not detected |
| Lead, Pb | Not detected |
| Hexavalent Chromium Cr+6 | Not detected |
| Mercury, Hg | Not detected |
| Polyvinyl Chloride | Not detected |
| Properties | Black Gold | DLC (Diamond Like Carbon) |
|
|---|---|---|---|
| Hardness | › 2000 (Vickers) | ~ 1500 (Vickers) | |
| Friction Coefficient | ~ 0.1 | ~ 0.1 | |
| Coating Temperature | ‹ 80 °C | ~~ 200 °C | |
| Working temperature | ~ 300 °C | ~ 200 °C | |
| Wear Rate | ~ 1.2 X10-4 mm3 /mN | ~ 8X10-4 mm3 /mN | |
| Typical Thickness | ~ 0.80 um | ~ 2 um | |
| Density | ~ 3gm/cm3 | ~ 2gm/cm3 |
